What mechanical equipment is needed for a factory producing plywood
In the wood processing industry, plywood, as an important building and decorative material, has an increasingly growing market demand. For manufacturers producing plywood, choosing appropriate mechanical equipment is the key to ensuring production efficiency and product quality. So, what machinery and equipment do plywood factories need?
1、 Log processing equipment
Raw wood peeling machine
Function: In the initial stage of plywood production, it is necessary to peel the logs. The log peeling machine can quickly and effectively remove the outer skin of logs, improve the utilization rate of wood, and provide clean raw materials for subsequent processing procedures.
Features: The log peeling machine usually adopts mechanical peeling method, which has the characteristics of high efficiency and stability. Some advanced peeling machines are also equipped with automatic feeding and discharging systems, which can achieve continuous operation and greatly improve production efficiency.
Sawmill
Function: Cut the peeled logs to a certain length and diameter to meet the specifications required for plywood production. The sawmill can adjust the cutting size according to different production needs to ensure that the logs are cut to the appropriate length and diameter.
Features: There are various types of saws, including band saws, circular saws, etc. The band saw machine has the characteristics of high cutting accuracy and strong adaptability, and can cut logs of various diameters; Circular saw machines are suitable for large-scale production and have the advantages of fast cutting speed and high efficiency.
2、 Single board manufacturing equipment

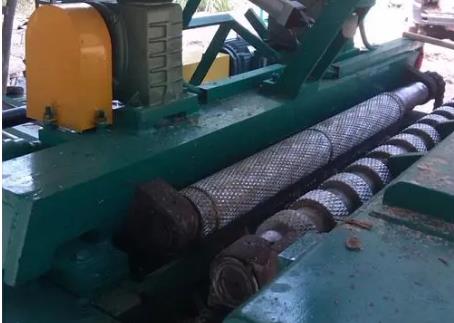

Single board rotary cutting machine
Function: The veneer rotary cutting machine is one of the core equipment in plywood production, which cuts logs into uniformly thick veneers by rotary cutting. The quality of veneer directly affects the strength, flatness, and appearance quality of plywood.
Characteristics: The performance of a veneer rotary cutting machine mainly depends on its rotary cutting accuracy and production efficiency. The advanced veneer rotary cutting machine adopts a high-precision tool holder system and an automated control system, which can achieve precise thickness control and continuous production. At the same time, some veneer rotary cutting machines also have automatic loading, unloading, and adjustment functions, greatly reducing labor intensity.
Single board dryer
Function: The veneer after rotary cutting contains a high amount of moisture and needs to be dried by a dryer to reduce its moisture content, improve its strength and stability. A veneer dryer can quickly and effectively remove moisture from veneers to achieve the appropriate moisture content, preparing them for the subsequent bonding process.
Features: Single board dryers usually use hot air drying method, which has the characteristics of fast drying speed and high efficiency. Some advanced dryers are also equipped with temperature and humidity control systems, which can adjust drying parameters according to different veneer materials and thicknesses to ensure the drying quality of veneers.
Single board splicing machine
Function: Due to the limited size of logs, the veneers produced by rotary cutting often need to be spliced to meet the width requirements of plywood. The veneer splicing machine can splice small pieces of veneer into large pieces, improving the utilization rate of veneer while ensuring the size of the plywood.
Features: There are various splicing methods for single board splicing machines, such as diagonal splicing, finger splicing, etc. The diagonal splicing machine is suitable for situations where the splicing strength is not high, while the finger splicing machine has the advantages of high splicing strength and good appearance quality. At the same time, some single board splicing machines also have functions such as automatic gluing, pressurization, and fixed length, which improve splicing efficiency and quality.
3、 Glue coating equipment

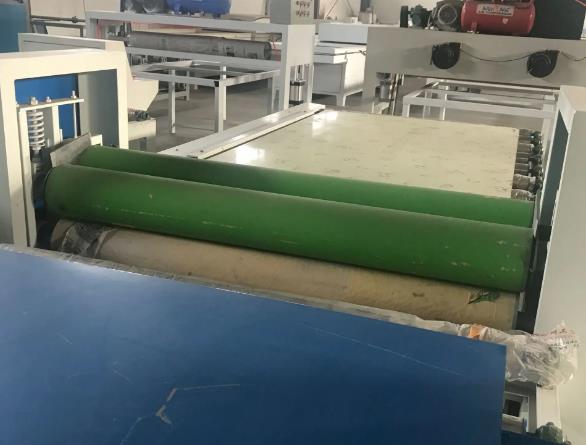

Glue coating machine
Function: In the production process of plywood, it is necessary to evenly apply glue to the surface of the veneer to achieve bonding between the veneers. The glue coating machine can accurately control the amount of glue applied, ensuring the bonding strength and quality between the veneers.
Features: There are many types of glue coating machines, such as roller glue coating machines, spray glue machines, and glue spraying machines. Roller coating machine is suitable for large-scale production and has the characteristics of uniform coating and high efficiency; The spray glue machine is suitable for situations where high precision is required for glue application, and can achieve precise control of the glue amount; The glue machine is suitable for special adhesives and process requirements.
4、 Hot pressing equipment

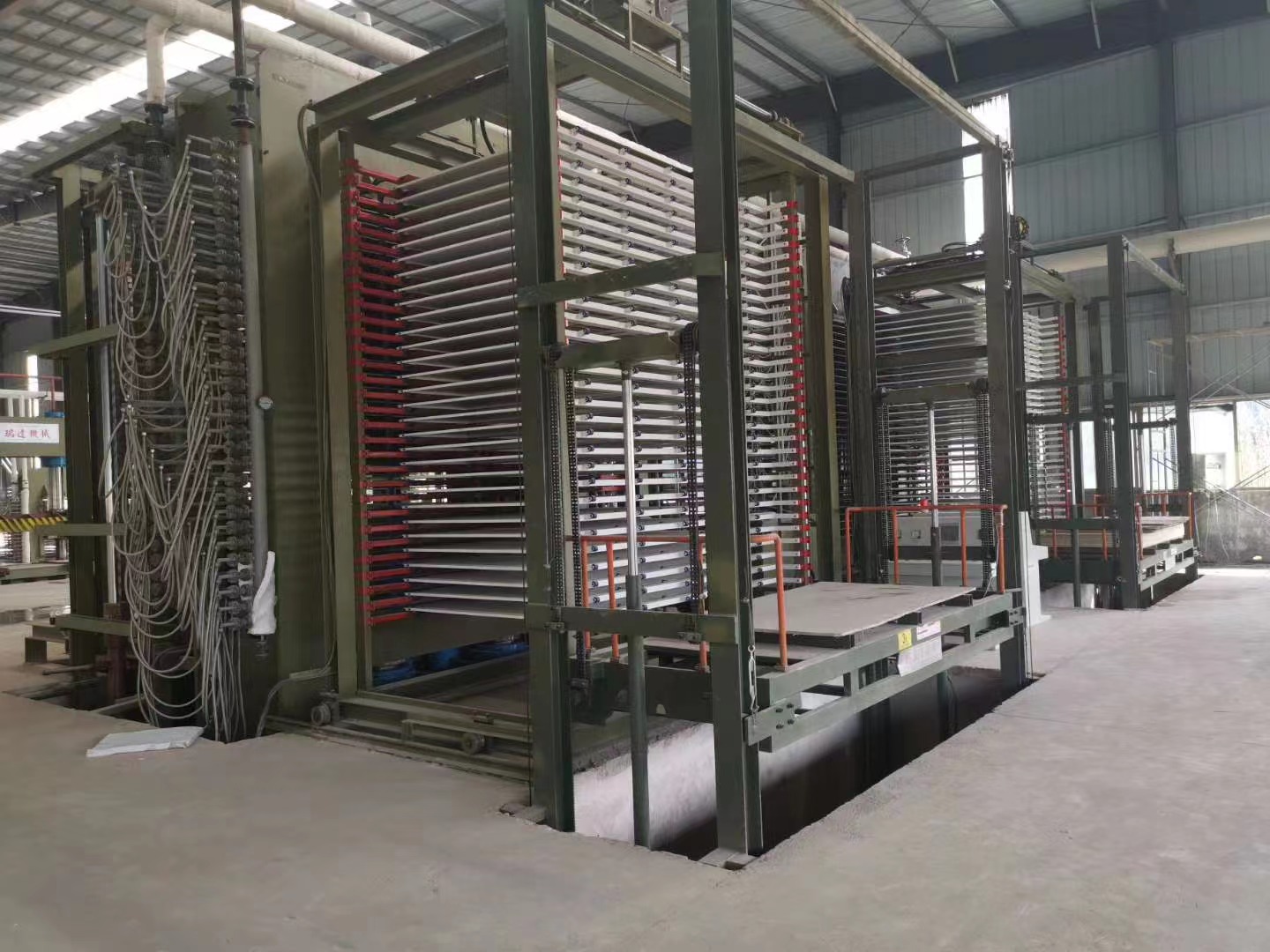

Hot press
Function: The hot press machine is one of the key equipment in plywood production. It uses heating and pressure to bond the glued veneers at a certain temperature and pressure, forming plywood. The performance of the hot press directly affects the bonding strength, flatness, and appearance quality of plywood.
Features: There are many types of hot press machines, such as multi-layer hot press machines, single-layer large format hot press machines, etc. Multi layer hot press machines are suitable for large-scale production and have the advantages of high production efficiency and low cost; A single-layer large format hot press machine is suitable for situations where the size requirements for plywood are high, and can produce large format plywood. At the same time, the pressure control, temperature regulation, and time control functions of the hot press are also very important to ensure the bonding quality of the plywood.
5、 Post processing equipment
Sander
Function: The sanding machine is used to sand the surface of glued plywood to improve its flatness and smoothness. The sanding machine can remove burrs, glue marks, and uneven parts on the surface of plywood, making its surface smoother and more delicate.
Features: There are many types of sanding machines, such as broadband sanding machines, narrowband sanding machines, etc. The broadband sanding machine is suitable for large-scale production and has the characteristics of high sanding efficiency and good effect; Narrowband sanding machine is suitable for sanding the edges and local areas of plywood.
Edge cutting machine
Function: The edge cutting machine is used to cut the edges of sandblasted plywood to remove any irregularities and make its dimensions more precise. The edge cutting machine can accurately cut the edges of plywood according to different specifications, ensuring that the size of the plywood meets the standards.
Features: There are various cutting methods for edge cutting machines, such as sawing, milling, etc. Sawing and edge cutting machines are suitable for situations where high cutting accuracy is not required, while milling and edge cutting machines have the advantages of high cutting accuracy and good surface quality.
Stacker crane
Function: The stacker crane is used to stack and package the trimmed plywood for storage and transportation. The stacker crane can automatically stack plywood, improving production efficiency and reducing the labor intensity of manual operation.
Characteristics: There are many types of stacker cranes, such as robotic arm stacker cranes, gantry stacker cranes, etc. The robotic stacker crane is suitable for situations that require high stacking accuracy and can achieve precise stacking and packaging; The gantry stacker crane is suitable for large-scale production and has the advantages of high stacking efficiency and good stability.
The factory producing plywood requires a series of mechanical equipment, including log processing equipment, veneer manufacturing equipment, gluing equipment, hot pressing equipment, and post-processing equipment. The performance and quality of these mechanical equipment directly affect the production efficiency and product quality of plywood. Therefore, when choosing mechanical equipment, manufacturers need to select suitable equipment based on their production needs and budget to ensure smooth production.
