What is the funnel effect at the center of a lime kiln shaft kiln
The "central funnel effect" is a common malfunction in lime shaft kiln production, commonly known as "heart pumping" or "hole dropping". Simply put, the material in the center of the kiln moves down much faster than at the edges, causing a sudden depression in the center of the material surface, forming a funnel-shaped deep pit.

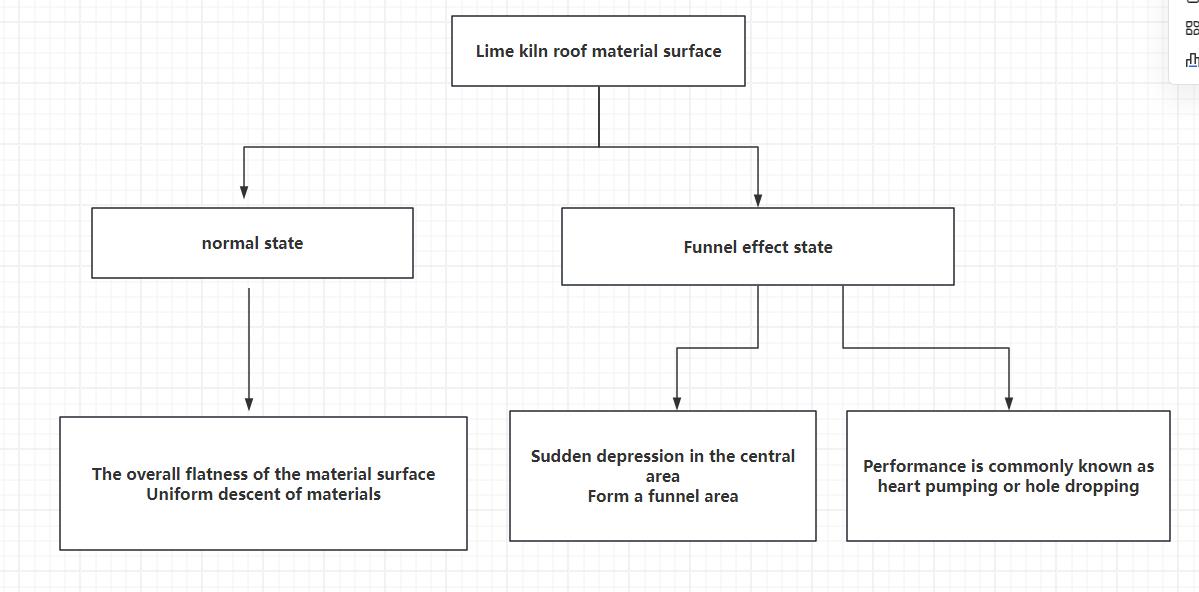

The following image can visually show the difference between a normal material surface and the occurrence of the "center funnel effect":
This phenomenon not only disrupts the normal calcination zone inside the kiln, seriously affecting the quality of lime, but may also be accompanied by fireballs and hot air flow, posing a safety hazard.
???? Why does the 'central funnel effect' occur?
The fundamental reason for this effect is the uneven drop of materials and ventilation, including:
Uneven ventilation and clumping: Poor ventilation in the central area of the kiln can easily create local high temperatures and reducing atmospheres, leading to the formation of dense and large blocks of materials. When these large blocks suddenly fall off due to their own weight, it will cause "heart pumping".
Unreasonable fabric: This is a key human factor. If small pieces of material are concentrated in the center and large pieces of material are distributed at the edges during fabric production, it will lead to poor breathability and high resistance in the center, exacerbating the above problems.
Unloading speed too fast: The material in the kiln has not yet formed a complete and solid calcination zone, but is quickly discharged, causing the central material layer to detach from the edge and collapse.
???? How to solve and prevent it?
To solve and prevent the 'central funnel effect', we need to start from both equipment and operation aspects:
Core solution idea: Adopt a fabric method of "center heavy, edge light". By using a graded material feeder, large pieces of material are distributed in the central area of the kiln, while small pieces are distributed at the edges. This can increase the breathability of the central area, reduce resistance, and balance the feeding speed of the entire kiln surface.
Optimizing the kiln structure: For example, using specially designed "high-pressure air caps" or "hyperbolic disk towers" at the bottom of the kiln can make the ventilation inside the kiln more uniform and improve the difference in material downward movement speed.
Standardized operation: During operation, it is necessary to control the stability and depth of the "bottom fire", avoid unloading too quickly, and always pay attention to whether there are signs of local sinking on the kiln surface for timely adjustment.
Simply put, the key to solving the "central funnel effect" is to ensure the stability of lime quality through reasonable material distribution (large material pressure in the middle, small material distribution on both sides) and uniform ventilation, so that the materials and airflow in the kiln are "synchronized".
